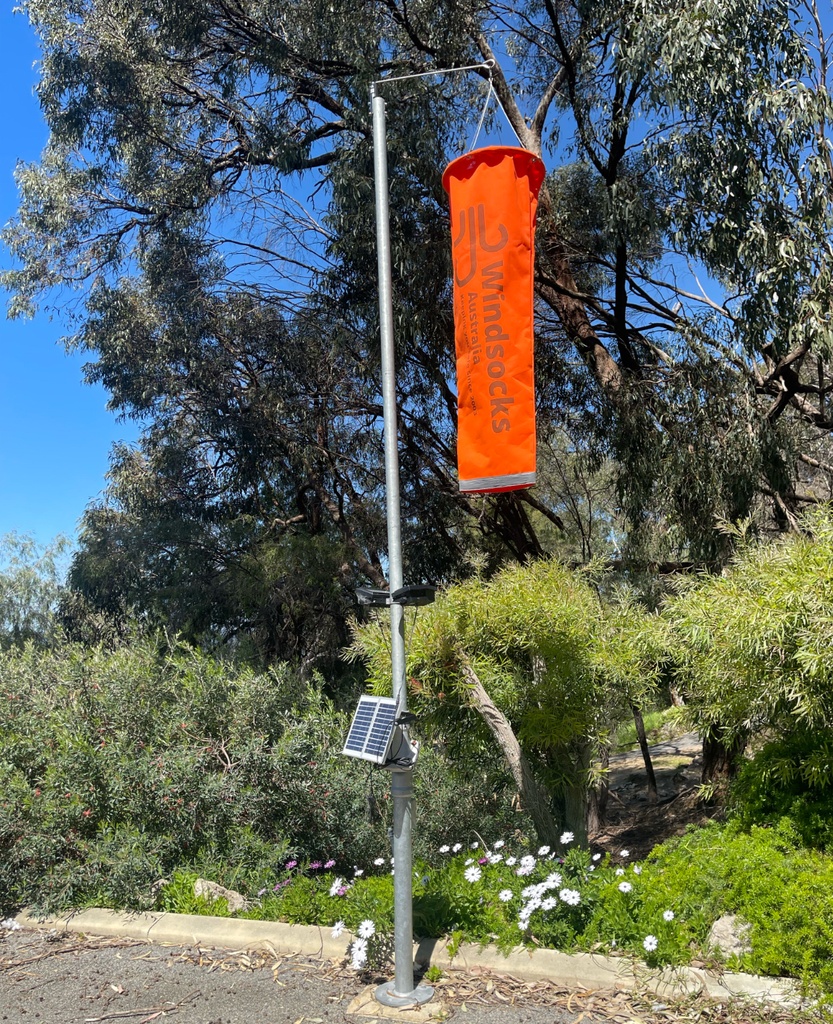

5000mm Base Mounted Windsock Assembly

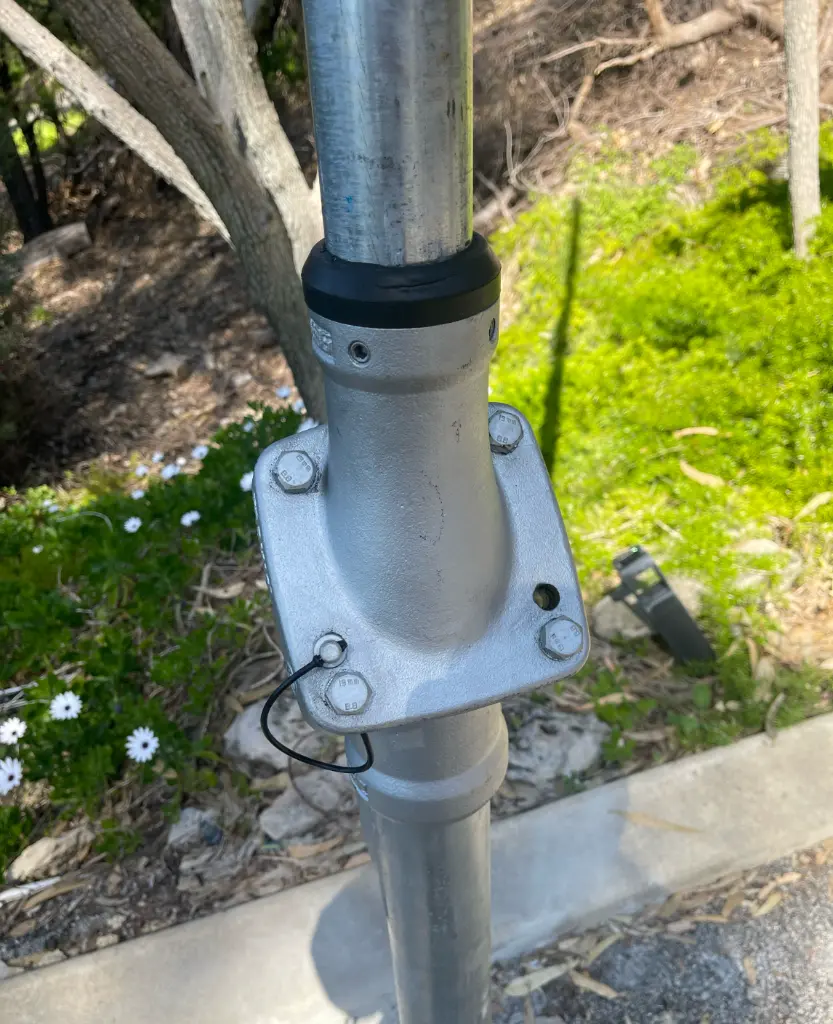

Base Mounted Windsock Assembly consisting of 5000mm Swivelpole Base Mounted Pole: base pole section 900mm DN65, base top section 3800mm DN50, pole sections inserted into steel zinc aluminium coated Maxis Joint. Pole and Joints comply with all relevant Australian Standards. Refer to the additional Product Data Sheet for footing information in different Wind Regions
Due to varying Wind Regions, assembly options and shipping costs, please contact us to request a quote.
Product Datasheet (PDF):
Internal Reference:
WSA-5000-F7M2-ASSEMBLY
Designed to provide an extremely robust, safe and very easy to operate Windsock Pole solution:
- mount to: floor, utilising cage bolts; precast concrete block or existing pad;
- no elevated Work Platforms (EWPs) Required - significant cost savings;

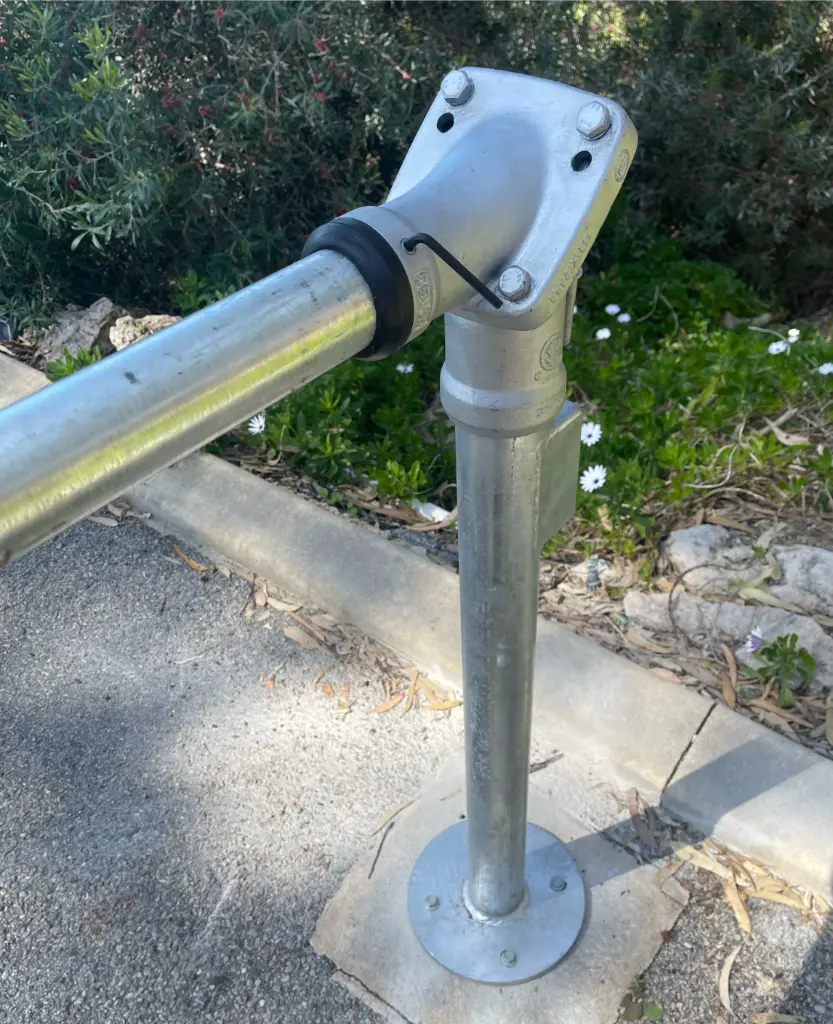

- base section, swivels ~ 1m above the ground - eliminates working at height issues;
- Engineered, up to Wind Region D (cyclonic) in Australia - dependent on the Windsock size.
- Windsock: 900mm to 2400mm: typically 1200mm or 1500mm length Windsock is installed;

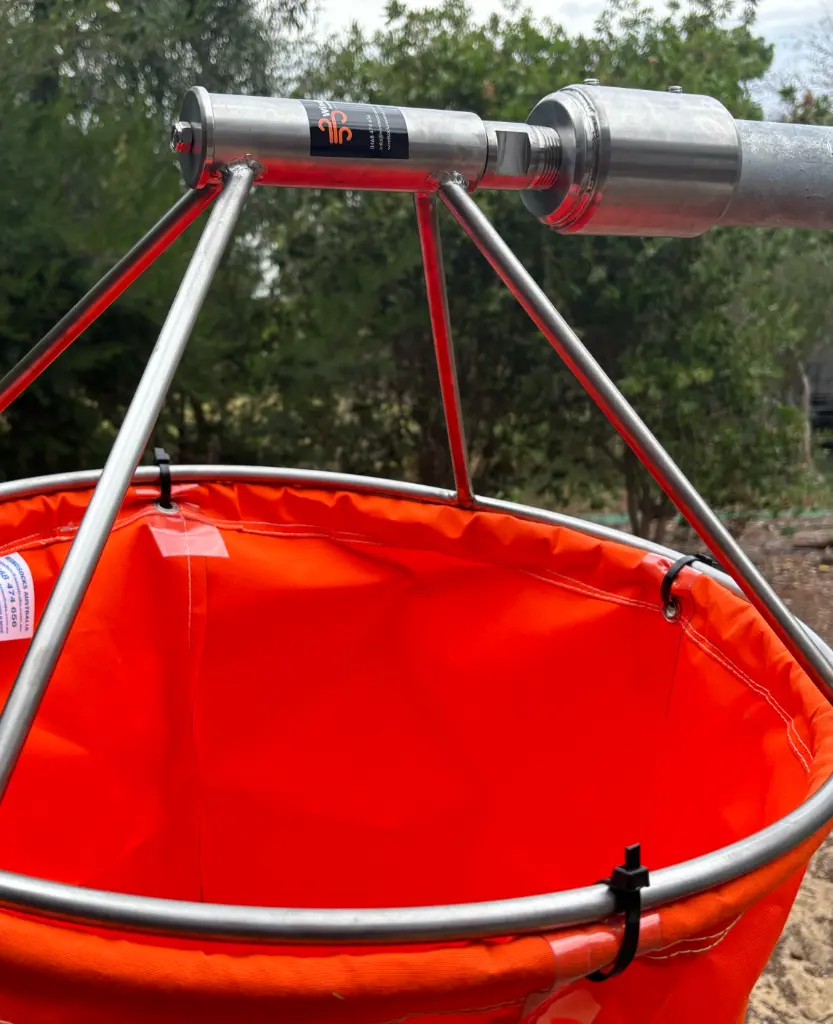

- Can be used for Rotor Arm Pivots, or Fixed Windsock Frames as pictured;
- Swivelling Pole: typical height 5000mm (4000mm to 6000mm available);
- Footings and footings design can be supplied;
- easy to operate;
- removes risk: simple to install, no qualifications needed
Our Best Selling Products ...
Notes:
Windsock photos are all 900x300x175mm (length, mouth Ø, tail Ø), with the exception of the 3650x900x250mm CASA Standard Windsocks.
Products may occasionally vary in colour from those shown on the website and from one Windsock to another. This is all down to the fact that they are hand-made with fabric varying batch to batch.
