Why We Use Lobster Claw Clips Instead of Snap Clips

A Windsock clip is a small, inexpensive component — which is perhaps why so many suppliers treat it as an afterthought. But in aviation, oil and gas, and industrial applications, a Windsock that detaches from its frame is not just a replacement cost. It is a safety hazard.

HARDWARE GUIDE

Topic

Hardware & Attachments

Applies To

All Windsock Systems

Key Material

316 Stainless Steel

Read Time

5 Minutes

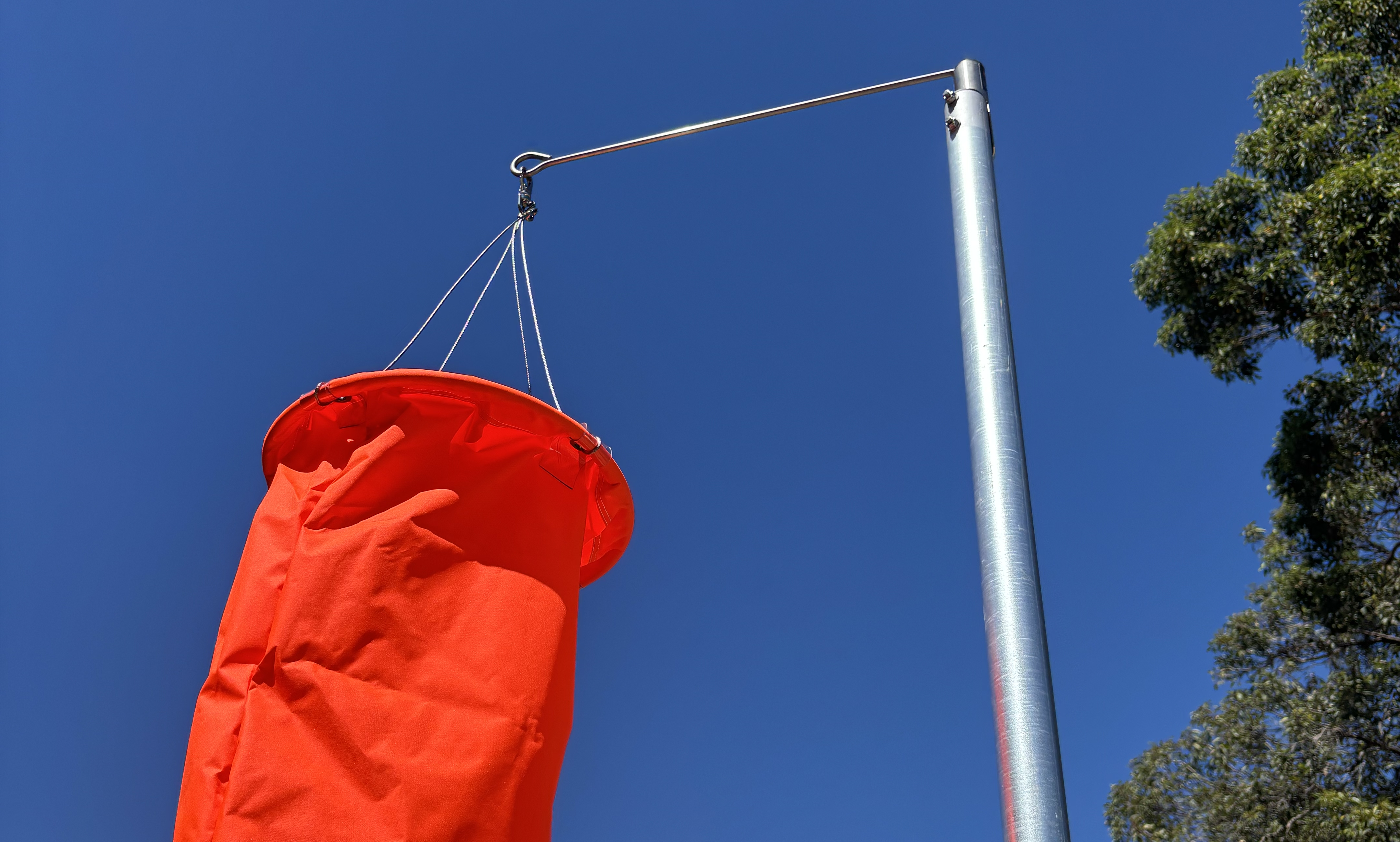

Windsock with bridle harness and Stainless Steel lobster claw clips

Windsock assembly with 316 Stainless Steel lobster claw clips and bridle harness attachment

The Clip You Use Matters

A Windsock clip is a small, inexpensive component — which is perhaps why so many suppliers treat it as an afterthought. But in aviation, oil and gas, and industrial applications, a Windsock that detaches from its frame is not just a replacement cost. It is a safety hazard. And in the case of a helipad or aerodrome, a stray Windsock caught in a rotor system can be catastrophic.

This is why Windsocks Australia specifies Stainless Steel lobster claw clips for all our Windsock attachments — and why we do not supply snap clips at all.

Safety First

A stray Windsock caught in a helicopter rotor system can be catastrophic. The clip holding it in place is a critical safety component — not an afterthought.

Understanding the Risks

Snap clips — also known as trigger clips or bolt snaps — are the small sprung-gate clips commonly used to attach Windsocks to bridle harnesses or Frame rings. They are cheap, quick to fit, and almost universally found on budget Windsock assemblies. They are also problematic in sustained outdoor use for several reasons:

1 Material Degradation — Most snap clips are manufactured from plated brass or zinc alloy. In UV-exposed, salt-laden, or chemically active environments, the plating degrades and the base metal corrodes. The spring mechanism inside the gate is particularly vulnerable — once it weakens, the gate no longer closes reliably.
2 Gate Failure From Torsion — A Windsock in wind is constantly rotating and moving. This puts torsional load on the clip, and a twisted Windsock can hold the gate of a snap clip partially open — allowing the clip to disengage from the ring in a gust.
3 Spring Fatigue — The internal spring that keeps the gate closed undergoes millions of flex cycles over a Windsock's service life. Spring fatigue is a known failure mode that is impossible to detect visually until the gate no longer closes properly.
4 Unintentional Release — A snap clip gate can be opened by contact with an adjacent rope, fitting, or structure. In an aviation environment with ground personnel working near the mast, or debris accumulation around the base, this risk is real.

⚠ Why Snap Clips Fail

Snap clips rely on a passive spring gate mechanism. Corrosion, torsion, spring fatigue, and incidental contact can all cause the gate to open — leading to Windsock detachment in the field.

The Superior Solution

A lobster claw clip uses a different locking mechanism. The gate is a sprung lever that requires deliberate, two-finger actuation to open — it cannot be opened by torsion, incidental contact, or simple spring fatigue in the way a snap clip can.

Key advantages of the lobster claw design include:

✓ Positive Locking — The lever mechanism requires intentional actuation. Wind, torsion, and incidental contact will not open it.
✓ Stainless Steel Construction — We specify 316-grade Stainless Steel throughout. It does not corrode in salt, UV, or chemical environments, and the spring mechanism retains its tension indefinitely in normal operating conditions.
✓ Higher Load Rating — Stainless Steel lobster claw clips of the size we use are rated to loads well in excess of anything a Windsock assembly will impose — providing a significant safety margin.
✓ Visual Inspection — The locking mechanism of a lobster claw clip is fully visible and easy to inspect. If the gate is closed and the lever returns under spring tension, the clip is functional. There is no hidden internal spring state to worry about.

Head-to-Head Comparison

Feature Snap Clips Lobster Claw Clips
Material Plated brass or zinc alloy 316 Stainless Steel
Locking Spring gate (passive) Lever mechanism (positive)
Corrosion Resistance Poor — plating degrades Excellent — Stainless throughout
Torsion Resistance Gate opens under twist Gate stays locked
Spring Fatigue Hidden failure risk Visible, inspectable
Accidental Release High risk Near zero risk
Load Rating Low to moderate Well in excess of requirements
Windsock installation at remote Australian airstrip

Windsock Frame installation showing lobster claw clip attachment points in the field

Installation and Maintenance

A lobster claw clip is only as reliable as its attachment. When fitting a Windsock to a bridle harness or Frame ring, ensure the clip passes fully through the attachment loop and the gate is completely closed before releasing. Do not attach through twisted or folded fabric — attach directly to the designated attachment loop on the harness.

🛠 Installation Tip

Always attach the lobster claw clip directly to the designated attachment loop on the harness. Never attach through twisted or folded fabric, as this compromises the locking mechanism and load distribution.

Routine Inspection Checklist

During routine inspections, check each clip for:

Inspection Points

✓ Gate closes fully and spring returns firmly

✓ No visible corrosion on the body, gate, or pivot point

✓ No deformation from impact or over-loading

✓ Attachment loop is intact and not frayed or stretched

Replacement Hardware Available

If a clip shows any sign of corrosion or gate failure, replace it immediately. Replacement Stainless Steel lobster claw clips are available from Windsocks Australia as individual items or as part of a full replacement hardware kit.

A Small Detail That Makes a Big Difference

When we specify hardware for our Windsock products, we ask: what would the consequence be if this component failed? For a clip holding a Windsock in place at an aerodrome or on an offshore platform, the answer is serious enough that we will never compromise on material or mechanism quality. Stainless Steel lobster claw clips are a minor cost uplift over snap clips — and an easy decision to make.

Windsock hardware installation and Pole mounting detail

Windsock Pole installation showing hardware detail and attachment points

Key Takeaways

316

Grade Stainless Steel

100%

Positive locking mechanism

2-Finger

Deliberate actuation required

Zero

Accidental release risk

20+

Years field experience

0

Snap clips in our range
